Mounting the Laser Tube                                                        Last update: 2019-08-13

User guide of this tube.    Manufacturers website



The label on the tube. It is almost 7 years after production now and it is questionable if it will work.

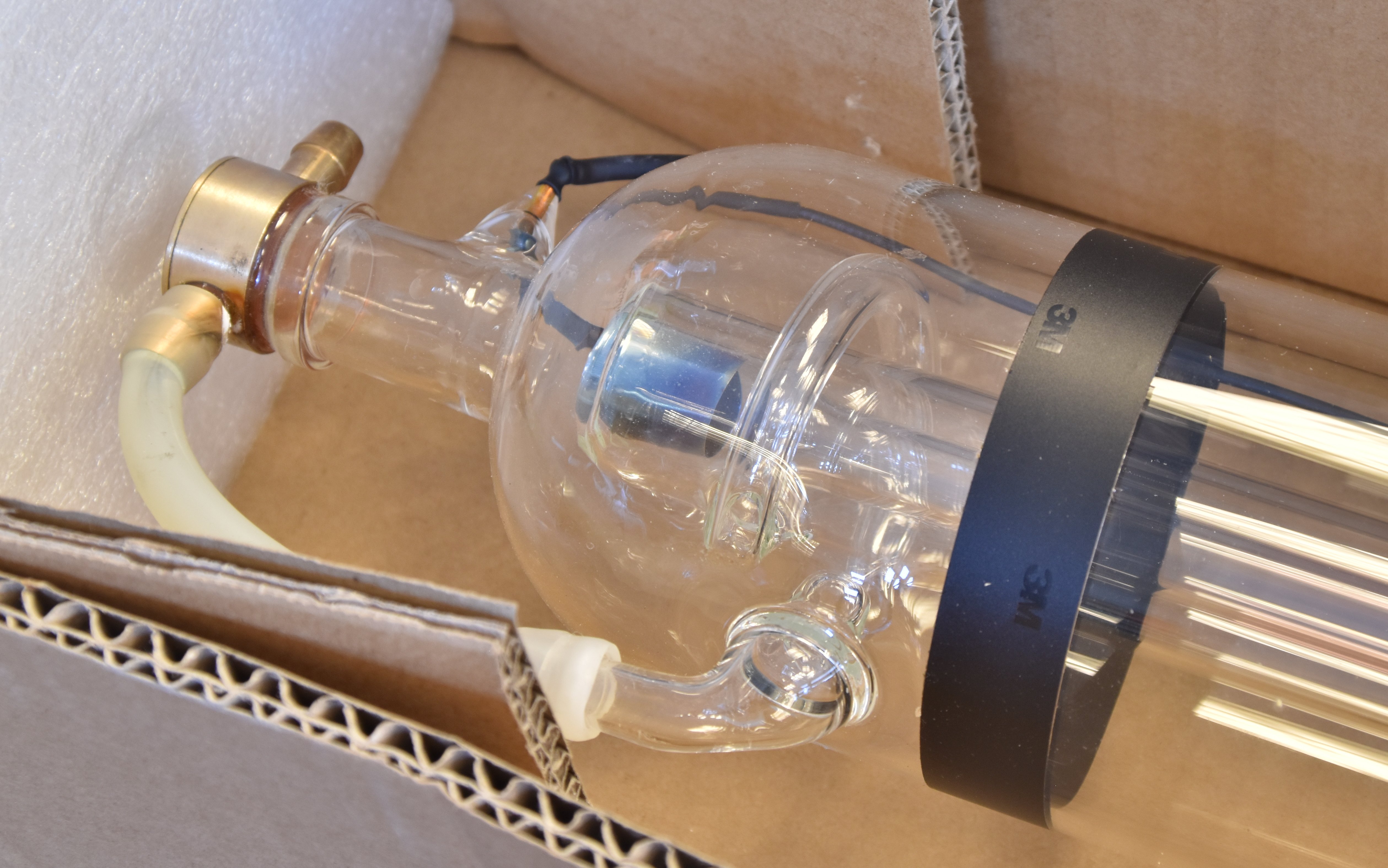

The cathode side with the water-cooled exit window. The black tape holds the cathode wire.

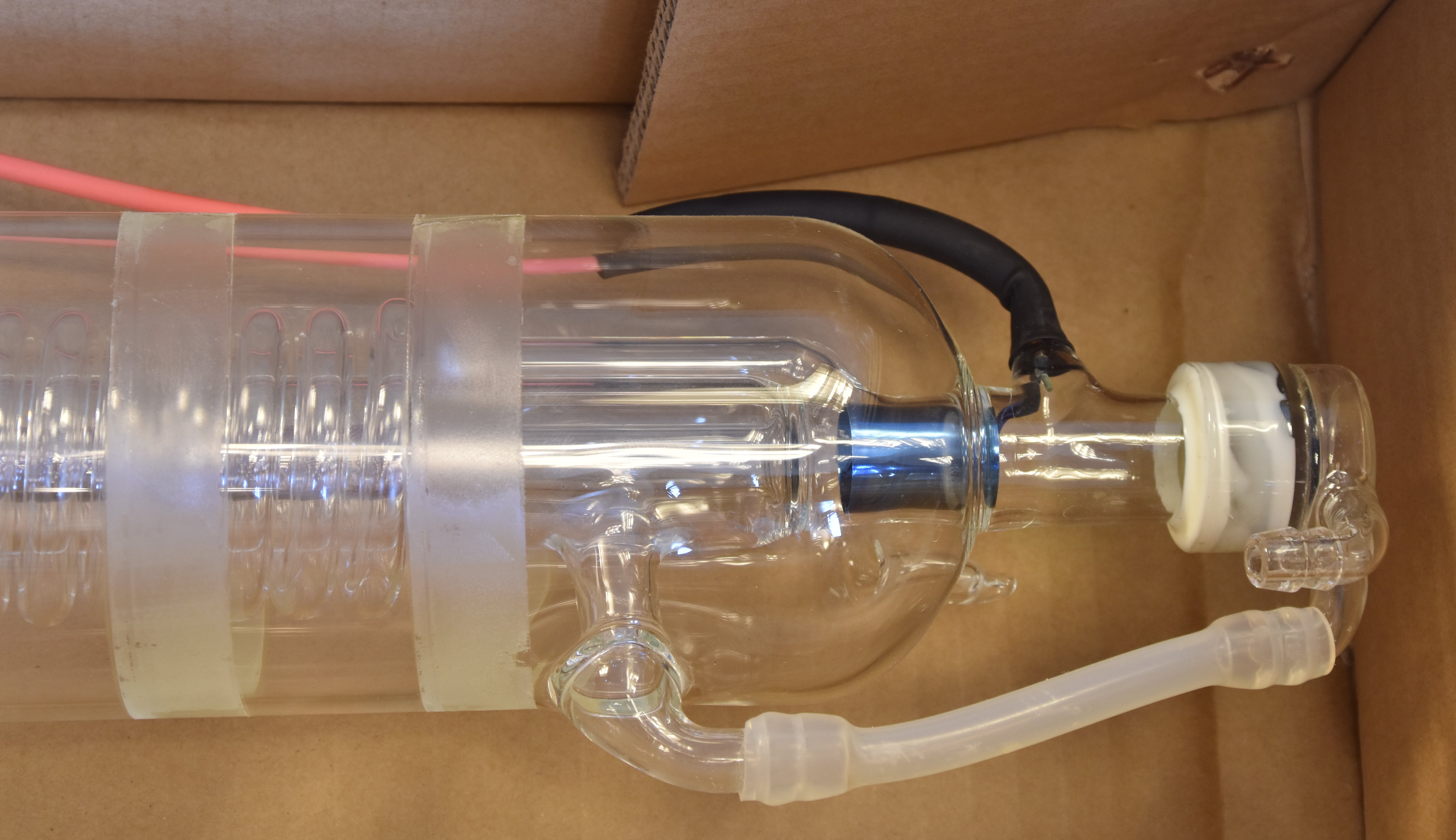

The anode side with the water cooled total reflecting mirror.
Cooling water should enter here because there is a direct connection to the water mantle.
On the cathode side there is a "loop" in the water circuit (see picture above) where air bubbles might insist to stay there.

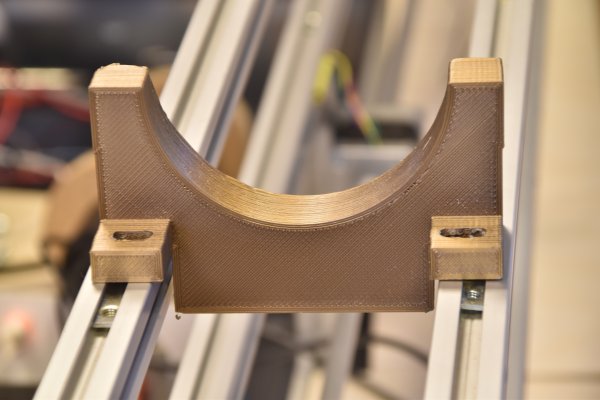

The tube support (one of two) as it was made before. It allows adjustment in the horizontal plane, but not in height.
So we made some add-on's to realize that too.

coming soon......
