Tensioners                                                                                             Last update: 2019-08-13
New tensioners have been designed. 3 identical sets were made, 1 for the X-axis and 2 for the Y-axis.

Here you find the OpenScad file from which they were 3-D printed.

I show pictures of the X-tensioner only, the two Y-tensioners are less accessible by the camera.

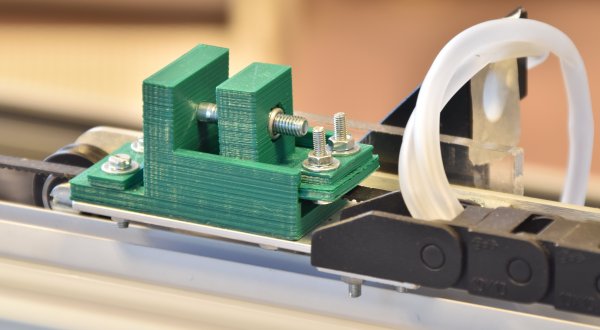

View of the X-spanner from the front.

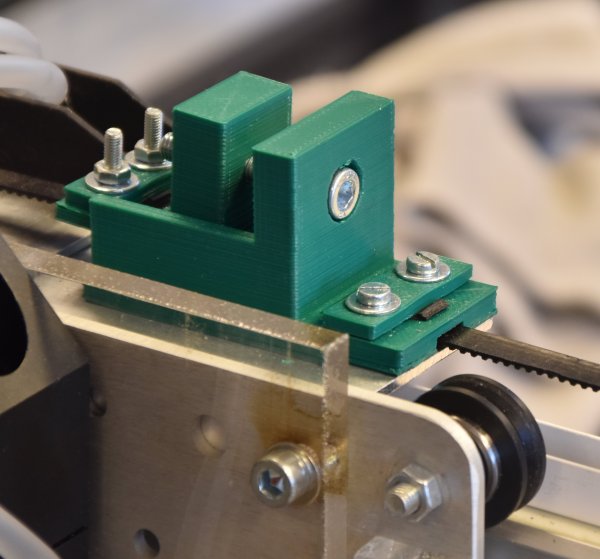

View from the backside of the machine.
