Support Construction                                                                                                      Last update: 2019-08-13
A laser cutter needs a sturdy support condtruction. The frame of the laser itself is not stiff enough.
We constructed a rigid frame from 40 x 40 x 2 mm steel tubes.

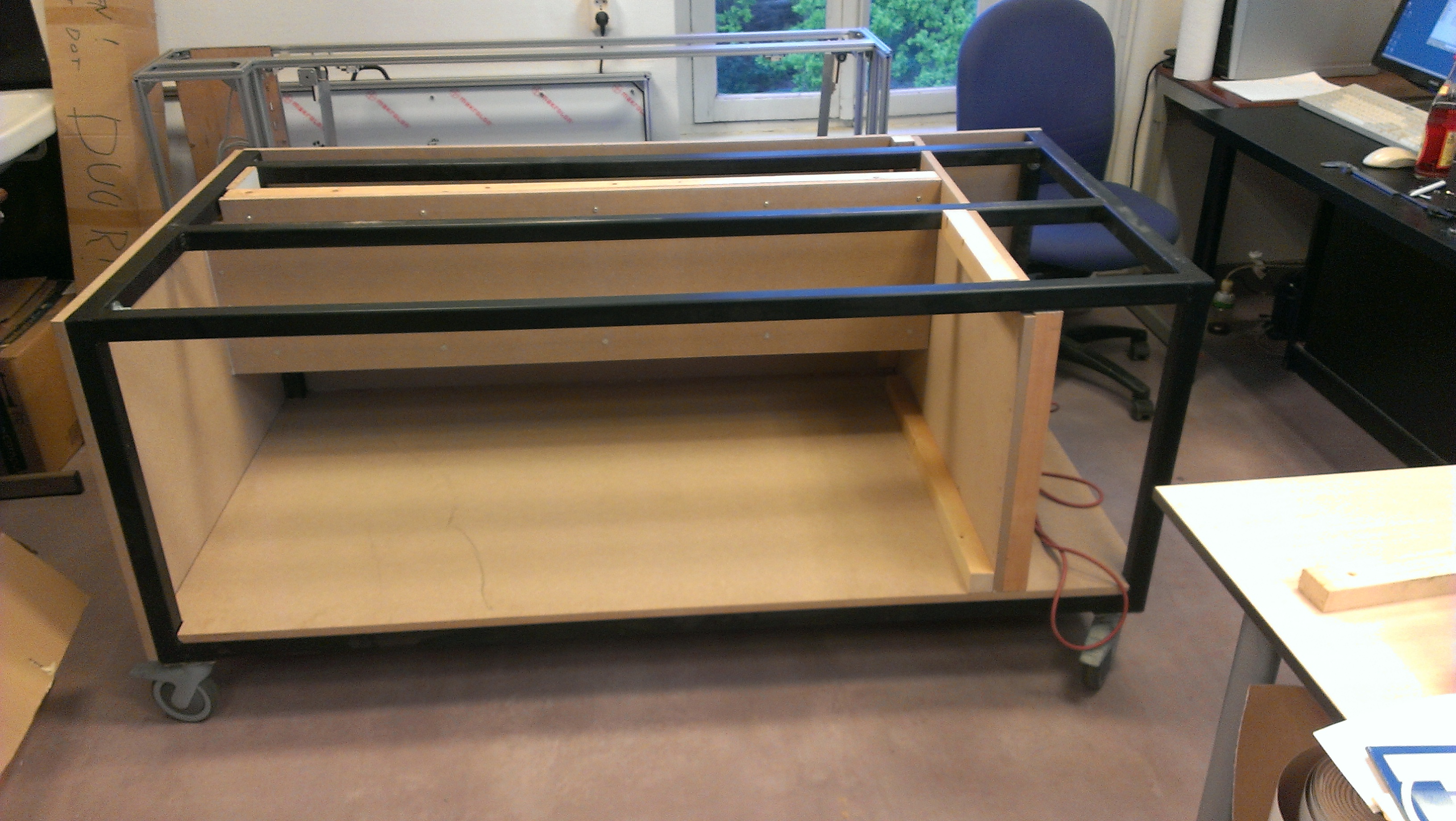

The frame partly dressed.

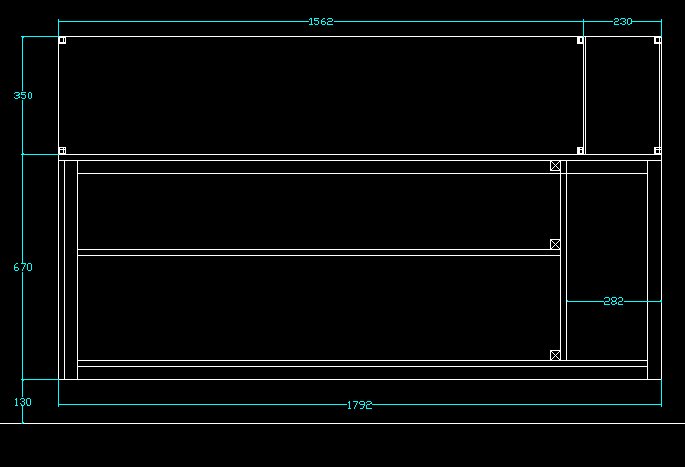

Major dimensions.

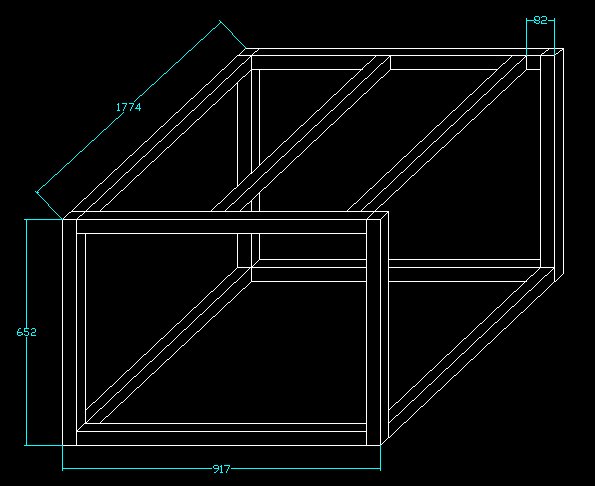

Welding work

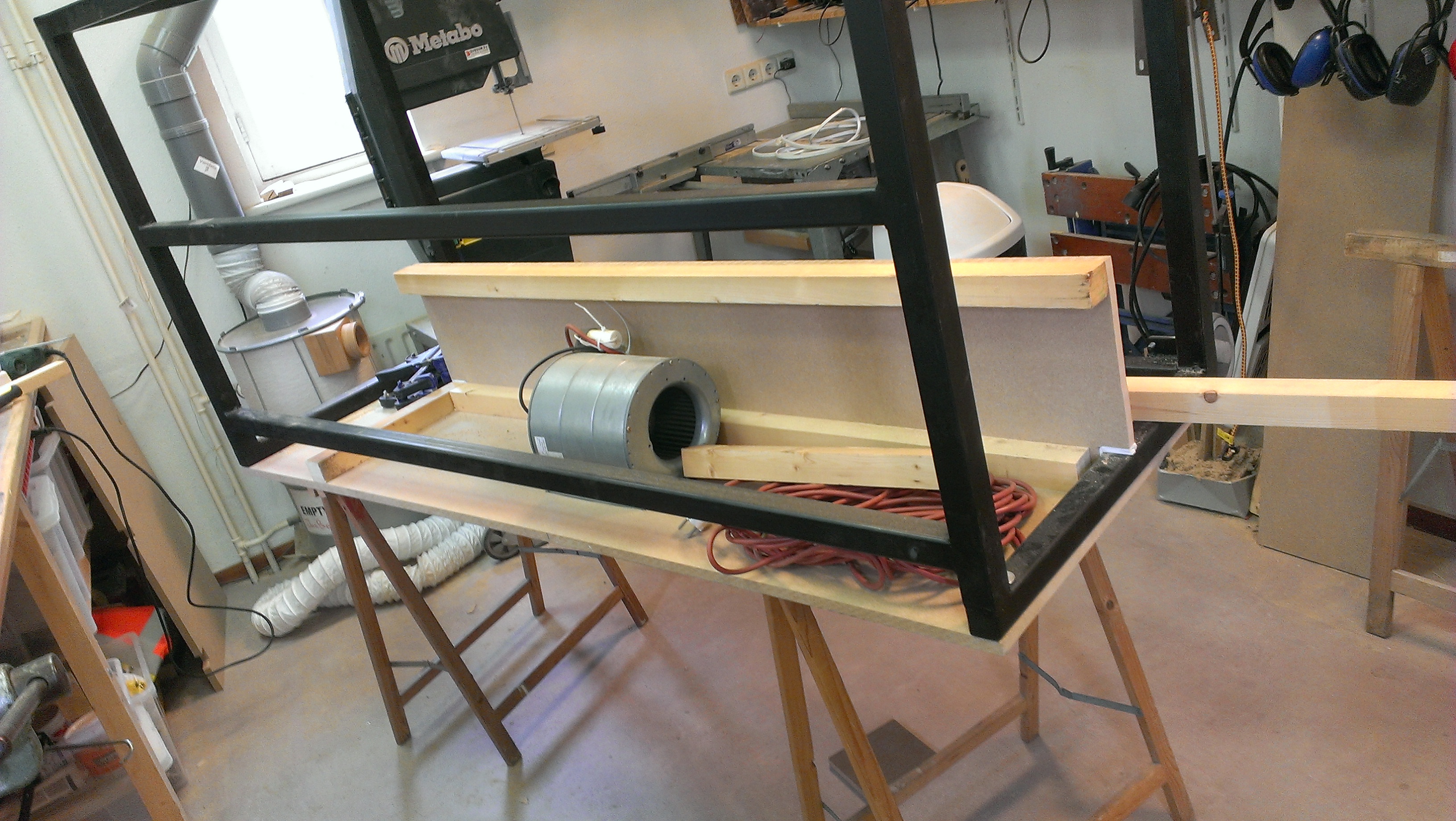

On its back, with the exhaust fan.

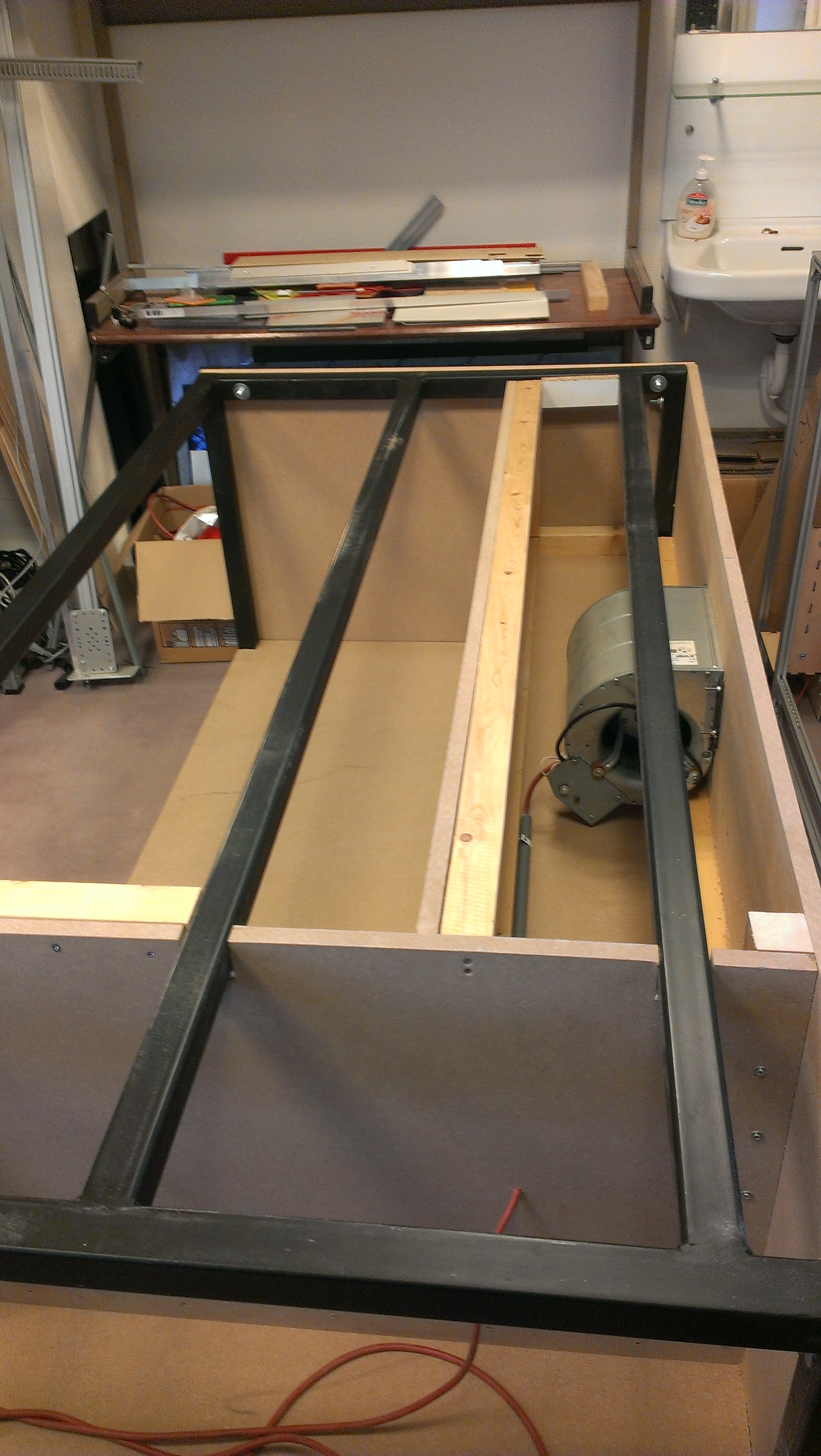

Inside view. Note on the right the opening for the exhaust over the full width of the laser area.

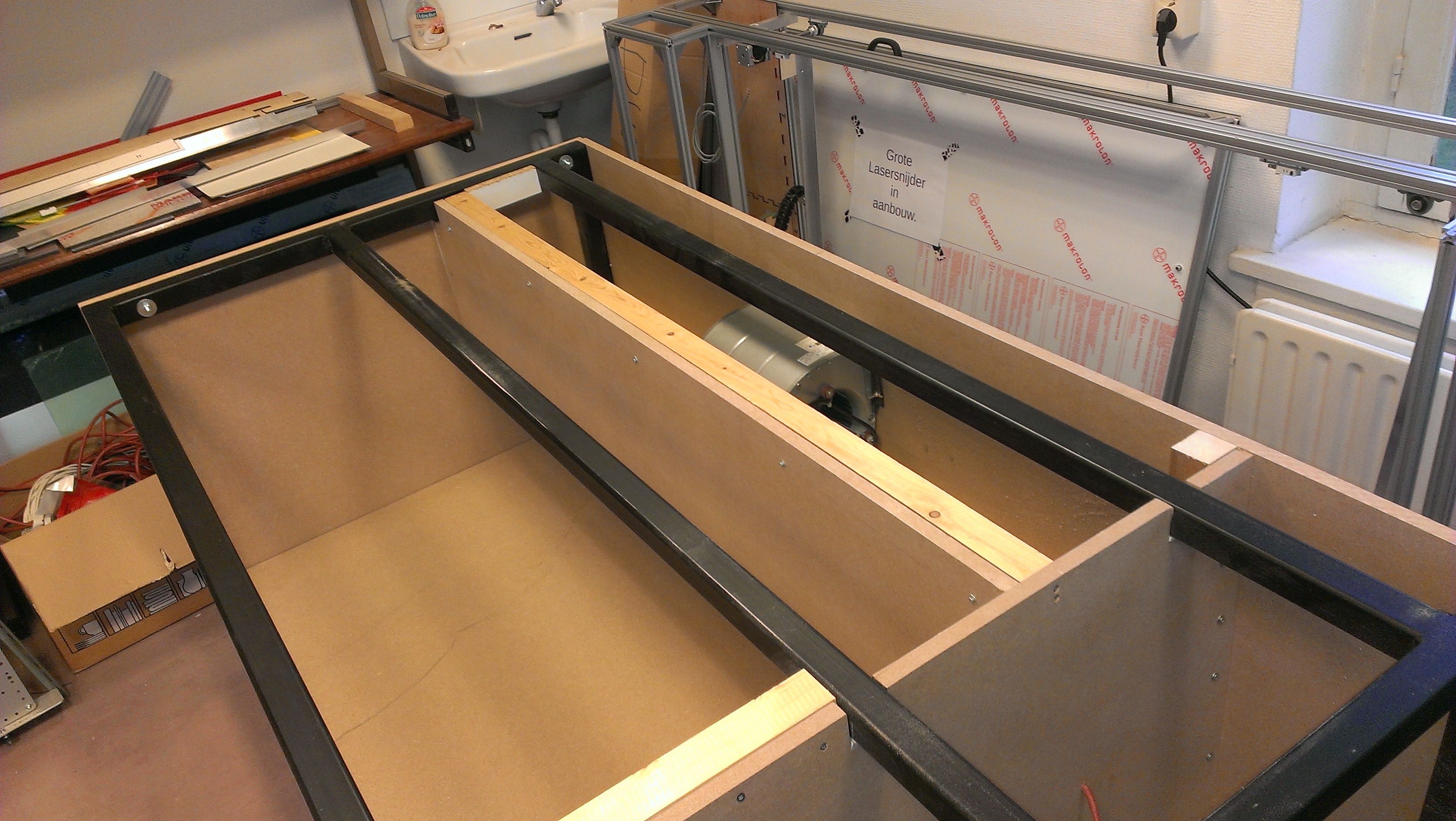

Top view. There will be a top layer of MDF before the machine is put into place.
